AUDIO TECHNICA - AT-OC9XSL Testina Phono MC special line contact

Prezzo: € 670.00
Invia ad un amico

Condividi


Disponibilità:
Tipo Prodotto: Testine Puntine HiFi

Richiedi informazioni

Descrizione:

Model: AT-OC9XSL
Mounting 1/2" centers / Threaded inserts
Frequency Response 20 - 50,000 Hz
Body Material Aluminium
Channel Separation 28 dB (1 kHz)
Output Channel Balance 0.5 dB (1 kHz)
Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
Stylus Shape Special Line Contact
Stylus Size 1.5 x 0.28 mil
Stylus Construction Nude rectangular shank
Cantilever 0.28 mm Ø nude boron
Coil Impedance 12 Ohms (1 kHz)
Coil Inductance 25 μH (1 kHz)
DC Resistance 12 Ohms
Static Compliance 22 x 10 - 6 cm / dyne
Dynamic Compliance 18 x 10 - 6 cm / dyne (100 Hz)
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance Min 100 Ohms
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

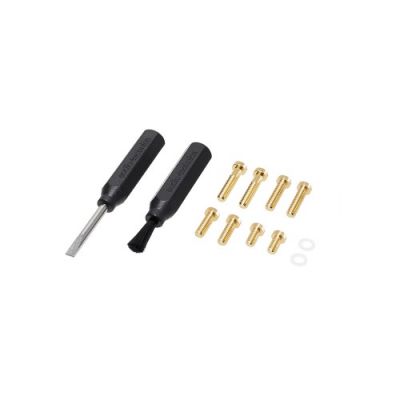

Accessories Included 1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector


Codice: AT-OC9XSL

Distribuzione: IMPORT JAPAN

Note:

Stato: Ordinabile

Anno Produzione: 2020

Peso: 100 gr.
